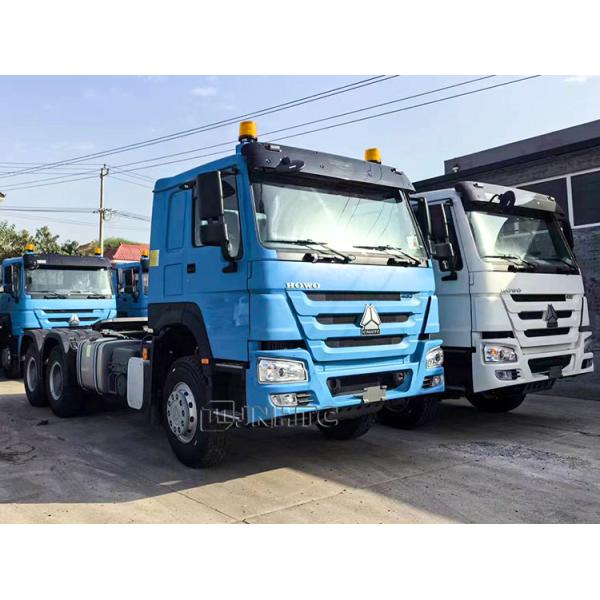

China Brand Sinotruk Howo 6x4 430hp 10 Wheels Tractor Trucks Brand New Truck for Sale rhd Tractor
A tractor is a general large truck or semi-trailer that is pulled by tools between the front and the trunk of the vehicle.
This means that the front of the vehicle can detach from the original trunk and pull other trunk, and the trunk can also
detach from the original trunk and be pulled by other trunk. The front vehicle with driving capability is called a tractor,
while the rear vehicle without driving capability is called a trailer. The trailer is towed by the tractor.
| Model | ZZ4257S3241W |
| Cabin | HW76, HOWO long cabin, with two seats and one bed |
| Engine | Model | WD615.47 |
| Horse Power (Hp/rpm) | 430/2200 |
| Max.Toruqe(Nm/rpm) | 1460/1300-1600 |
| Displacement (L) | 9.726 |
| Type | DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance |
| Transmission | HW19710, 10 forwards and 2 reverse |
| Front Axle | HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs. |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8) |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer |
| Steering System | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah |
| Tire | 12.00R20 |
| Fuel Tank(Gas Tank) Capacity (L) | 400L Diesel Tank |
| Dead Weight (kg) | 9180 |
| Gross Vehicle Weight (kg) | 41000 |
| Gross Combination Weight (kg) | 70000 |
| Overall Dimension(L*W*H)(mm) | 6800×2496×3200 |
| Wheelbase(mm) | 3200+1350 |
| Front axle loading capacity(kg) | 9000 |
| Wheel Track(Front/Rear)(mm) | 2022/1830 |
| Min. Ground Clearance(mm) | 298 |
| Approach/Departure Angle( °) | 16/70 |
| Max. Speed (km/h) | 102 |
| Max. Gradebility (%) | 29 |

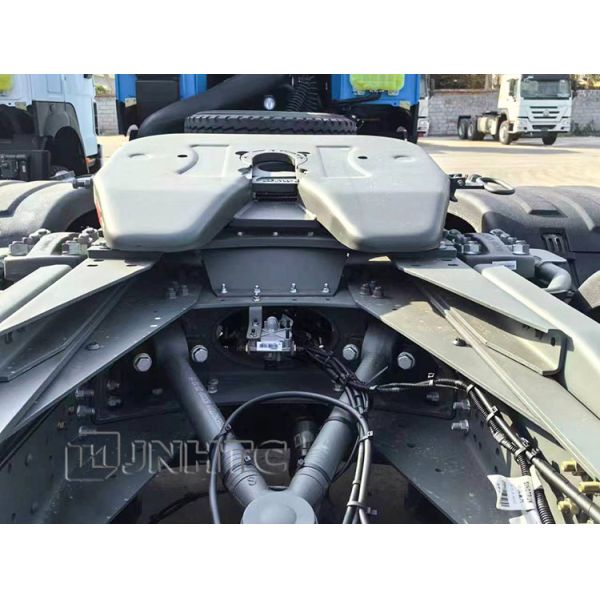

| The Fifth Wheel | 2”(50#) |
There are two ways to connect a tractor and a trailer: the first is to place the front half of the
trailer on the traction saddle above the rear section of the tractor, and the bridge behind the
tractor bears a portion of the weight of the trailer, which is called a semi trailer; The second
type is that the front end of the trailer is connected to the rear end of the tractor, which only
provides forward pulling force and towing the trailer, but does not bear the downward weight
of the trailer, which is called full trailer.
