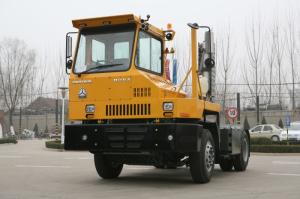

SINOTRUCK Terminal Tractor For Port With 5th Wheel Lifted Right / Left Driving,4x2 266hp, loading 50t-90t
Description:
Produced by complete German MAN truck technology, install with Chinese components make the truck European truck quality and Chinese made price.
Specification:
| GW5320 Series Terminal tractor head |
| Model | GW5320 Series |
| Driveline | 4x2 |
| Wheelbase (mm) | 2800 |
| Overall dimension | Length(mm) | 4650 |
| Width(mm) | 2690 |
| Height(mm) | 2890 |
| Track | FR/RR(mm) | 2026/1860 |
| Overhang | FR/RR (mm) | 1200/750 |
| Kerb weight (kg) | 9000 |
| Permissible loading weight(kg) | 70000 |
| Max speed | Km/h | 40 |
| Min turning diameter | m | 11.4 |
| Min ground clearance (mm | 1220 |
| Engine style |
| Model | Shangchai SC8DK260Q3 WD615.92C |
| Type | Intercooling, supercharging, |
| Number of cylinder | Direct-In-line 6 |
| Displacement(L) | 8.3 |
| Emission | Euro III |
| Max output power(kw/rpm)
Max torque (N.m/rpm) | 192(260)1500/2200 |
| Transmission |
| Model | MD3500 Allison automatic gearbox, |
Type
Gear box | 4 gears |
| Rear axle |
| Model | YOUNGMAN axle, strengthened driven axle |
| Front axle |
Model
Type | YOUNGMAN Axle, non-driven HW--- HOWO 7T |
| Steering system | Imported TRW steering |
| Braking sytstem |
| Pedal brake | Type | Dual-circuit air system, front/rear drum brake |
| Suspension |
| Type | FR/RR | Lengthways semiellipse spring |
| Tyre | 11.00-20 18PR |
| Oil Tank |
| Material | Steel |
| Fuel tank capacity | Liter | 230L |
Competitive Advantage:
Q1: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and
management team!
We always attach great importance to quality controlling from the very beginning!
Q2: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 4: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and
trailers.
And we are well capable in offering overseas after-sales service. Besides, we also
provide rational packing and shipping program,let shipment save money and security.
Q 5: What's the delivery time ?
A: The delivery time is within 15 working days after receiving your advance payment.
Q 6: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to . if we don’t delivery products on
time, the deposit will return to you.
Mrs AnneHan (International Marketing depart)
E-Mail :AnneHan_Sinotruk@163.com
Cell &Whatsapp&Wechat: +86 18353169581
Linkin :AnneHan
Facebook:AnneHan
CHINA NATIONAL HEAVY DUTY TRUCK GROUP
JINAN HEAVY TRUCK IMPORT&EXPORT CO.,LTD
TRUCK ,TRAILER ,MACHINERY ,EQUIPMENT ,SPARE PARTS .....ETC FOR SALE&EXPORT .
