New Shacman 10m3 15 Cubic Meters Self-loading Concrete Mixer Truck

Jinan Heavy Truck Import & Export Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

New Shacman 10m3 15 Cubic Meters Self-loading Concrete Mixer Truck

Brand Name : Shacman

Model Number : jnhtc

Certification : ISO CCC

Place of Origin : China

MOQ : 1 unit

Price : $46500 unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 unit per month

Delivery Time : 30days

Packaging Details : No nude

Drive wheel : 6x4 drive model

Fuel type : Diesel

Condition : New

Gross vehicle weight : 25000

Horsepower : 351 - 450hp

Emission standard : Euro 2

Port : Qingdao/Tianjin

Color : Customer's Request

Contact Now

Shacman 10m3 15 Cubic Meters Self-loading Concrete Mixer Truck With Electronic Stability Control System

1. products description

Model
SX5255GJBDR384
Make
SHACMAN
Dimensions(mm)
10,600X 2,499 X 3,450
Engine
WP10.340E22+PTO, Weichai engine, Euro 2
HorsePower
340HP
Transmission
10JSD180, 10 forward and 2 reverse, FAST brand
Driving Cab
SHACMAN F3000, flat roof cab with single sleeper,Air main seat, four-point air suspension cab, electronically controlled automatic
constant temperature Air Conditioner, electric window shaker, metal bumper, with USB, can play radio with MP3 format
Chassis Frame
8+5 mm, reinforced double layer frame
Wheelbase (mm)
4375+1400
Front Axle
7.5 T MAN
Rear Axle
13T MAN , single reduction 5.262
Tyre
12.00R20
Suspension
Multi Leaf Springs & 2 Main Piece U-bolts
Fuel Tank Capacity (L)
400L, Aluminium tank
Braking
Drum,Dual-circuit compressed air brake,Power spring brake acting on front & rear wheel
Color
Optional

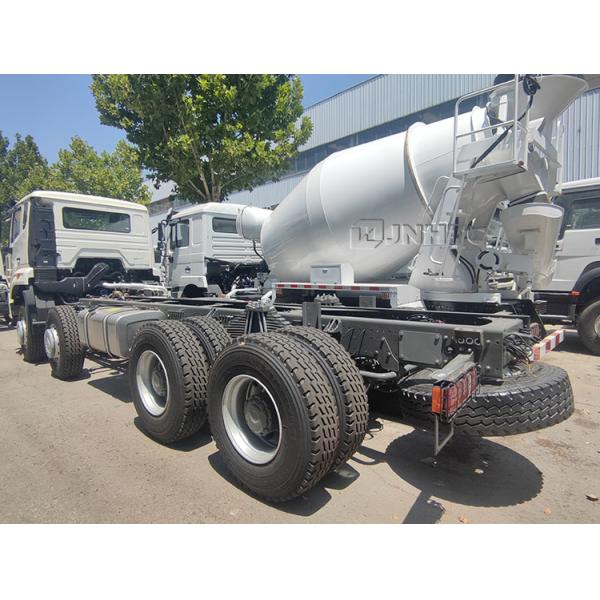

2. Products show

Mixer truck is a kind of vehicle specially used for transporting and mixing concrete, also known as concrete

mixing truck. It plays an important role in fields such as construction sites, road construction and infrastructure

construction.
Vehicle structure: The mixer truck is usually composed of chassis, mixing tank, mixing device, feeding system,

discharging system and control system. The chassis is generally used for heavy trucks or special chassis

to ensure the carrying capacity and stability of the vehicle.
Mixing tank: This is the core part of the mixer truck for loading and mixing concrete. The inside of the tank

is equipped with mixing blades or mixing shafts, and the concrete raw materials are fully mixed by rotating

mixing.
Stirring device: The stirring device is usually driven by a motor or hydraulic motor, which drives the stirring

blade or the stirring shaft to rotate. Mixing speed and time can be adjusted according to the type and

requirements of concrete.
Feed system: The feed system includes components such as the feed hopper and conveyor belt to transport

the concrete raw material into the mixing tank. The hopper is usually removable for easy material loading.
Discharge system: The discharge system generally includes discharge doors and discharge chutes, etc.,

which can unload the mixed concrete to the construction site. The opening and closing of the discharge

door can be operated by the control system.
