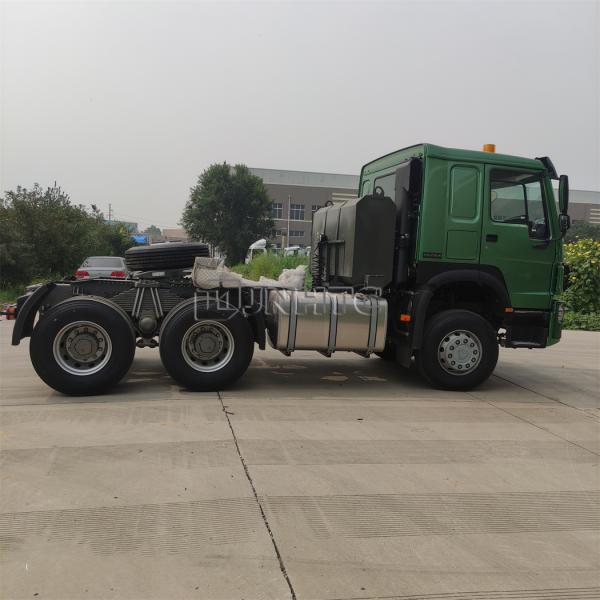

Sinotruk Howo TX 6x4 430hp 10 Wheels Tractor Trailer Truck Rhd Tractor

Jinan Heavy Truck Import & Export Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Sinotruk Howo TX 6x4 430hp 10 Wheels Tractor Trailer Truck Rhd Tractor

Brand Name : SINOTRUK

Model Number : ZZ4257S3241W

Certification : CCC

Place of Origin : JINAN, CHINA

MOQ : 1

Price : 35000

Payment Terms : L/C, T/T

Supply Ability : 100 pieces per month

Delivery Time : 20 days

Packaging Details : nude packing

Color : Red, White, Yellow, Green, Blue

Model : ZZ4257S3241W

Tire : 12.00r20

Cabin : HW76

Gearbox : HW19710

Fuel type : Diesel

Horsepower : 351 - 450hp

Size : 6800x2496x2958

Product name : Tractor Truck Tractor Head

Horse power : 371 HP

Contact Now

China Brand Sinotruk Howo 6x4 430hp 10 Wheels Tractor Trucks Brand New Truck for Sale rhd Tractor

Model ZZ4257S3241W
Cabin HW76, HOWO long cabin, with two seats and one bed

Engine

Model WD615.47
Horse Power (Hp/rpm) 371/2200
Max.Toruqe(Nm/rpm) 1460/1300-1600
Displacement (L) 9.726
Type DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine
Clutch Φ430 Diaphragm spring clutch, hydraulic operating with air assistance
Transmission HW19710, 10 forwards and 2 reverse
Front Axle HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs.
Driving Axle HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8)
Suspension Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System ZF power steering, model ZF8118, hydraulic steering with power assistance
Brake System Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Electrics Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah
Tire 12.00R20
Fuel Tank(Gas Tank) Capacity (L) 400L Diesel Tank
Dead Weight (kg) 9180
Gross Vehicle Weight (kg) 41000
Gross Combination Weight (kg) 70000
Overall Dimension(L*W*H)(mm) 6800×2496×3200
Wheelbase(mm) 3200+1350
Front axle loading capacity(kg) 9000
Wheel Track(Front/Rear)(mm) 2022/1830
Min. Ground Clearance(mm) 298
Approach/Departure Angle( °) 16/70
Max. Speed (km/h) 102
Max. Gradebility (%) 29
The Fifth Wheel 2(50#)

Sinotruk Howo TX 6x4 430hp 10 Wheels Tractor Trailer Truck Rhd Tractor

Sinotruk Howo TX 6x4 430hp 10 Wheels Tractor Trailer Truck Rhd Tractor

Sinotruk Howo TX 6x4 430hp 10 Wheels Tractor Trailer Truck Rhd Tractor

High Efficiency is One of Our Goal and Promise to Our Customers

We will be always with our customers whenever and wherever we are. All problems and questions shall be solved by our end at the first time. Customer priority outstands without any doubt.

Latest Truck Development and Trends Shall Be Delivered Regularly

We have abundant technical team, familiar with local and major exporter product standards. Our customers will be regularly updated with the latest truck development and trends in China and other countries.

Who we are?

The most professional truck and spare parts distributor in China;

The leading truck and spare parts exporter in China;

The most comprehensive truck and spare parts solution provider in China;

The most worry-free and most satisfactory and reputable supplier for you in China.
